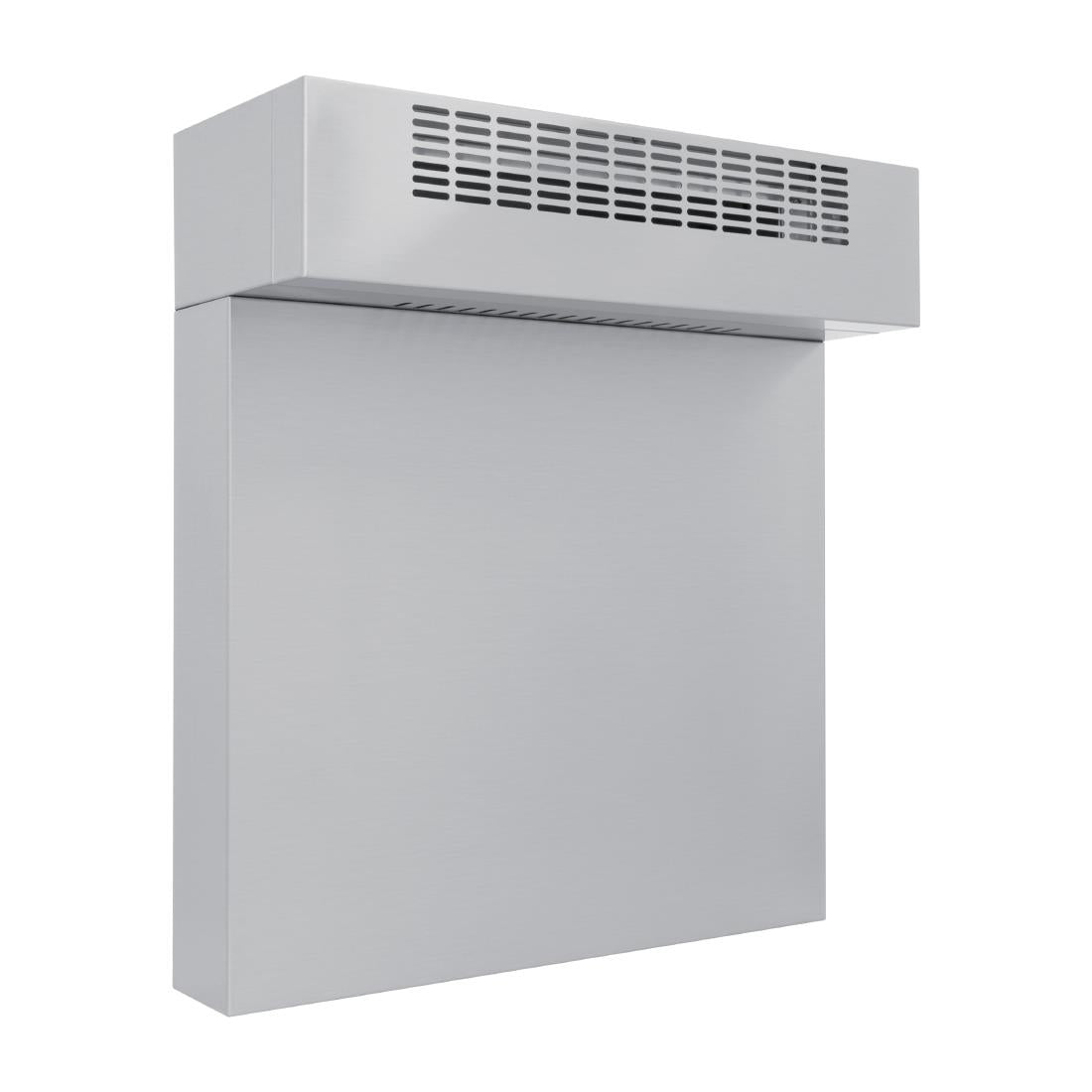

Norris 90-300 AP and FI Steam Condenser Unit • PAS-DD981

Norris 90-300 AP and FI Steam Condenser Unit • PAS-DD981

PAS-DD981

$6,554.00 AUD
$6,554.00 AUD
Sale Sold out
Tax included.

Includes 16mm pex hose & outlet

Designed to fit the Norris AP750, AP2500 and FI 750 upright commercial dishwashers, this condenser removes the need for costly hoods and return air systems by using the cold water to cool a condenser coil.

The condenser then draws the steam out of the dishwasher and into the condenser with a tangential fan (1200 RPM flowing at 650m3 /hour). As the air passes over the coil, it cools and condenses, the steam turns into water droplets and returns back to the dishwasher.

The heat is removed from the air by heating the cold water, which pre-heats the incoming water for the dishwasher, saving energy. All that is left is cool, dry air. Built to the requirements of AS1668_2, the steam condenser is a self-contained unit that does not impact on existing ventilation or extraction systems.
  • Dimensions: 699(H) x 560(W)mm
  • Material: Metal
  • Weight: 30kg
  • Australian Made
  • Includes 16mm pex hose & outlet
  • Suits sites with limited ventilation
  • Built to AS1668_2 requirements
